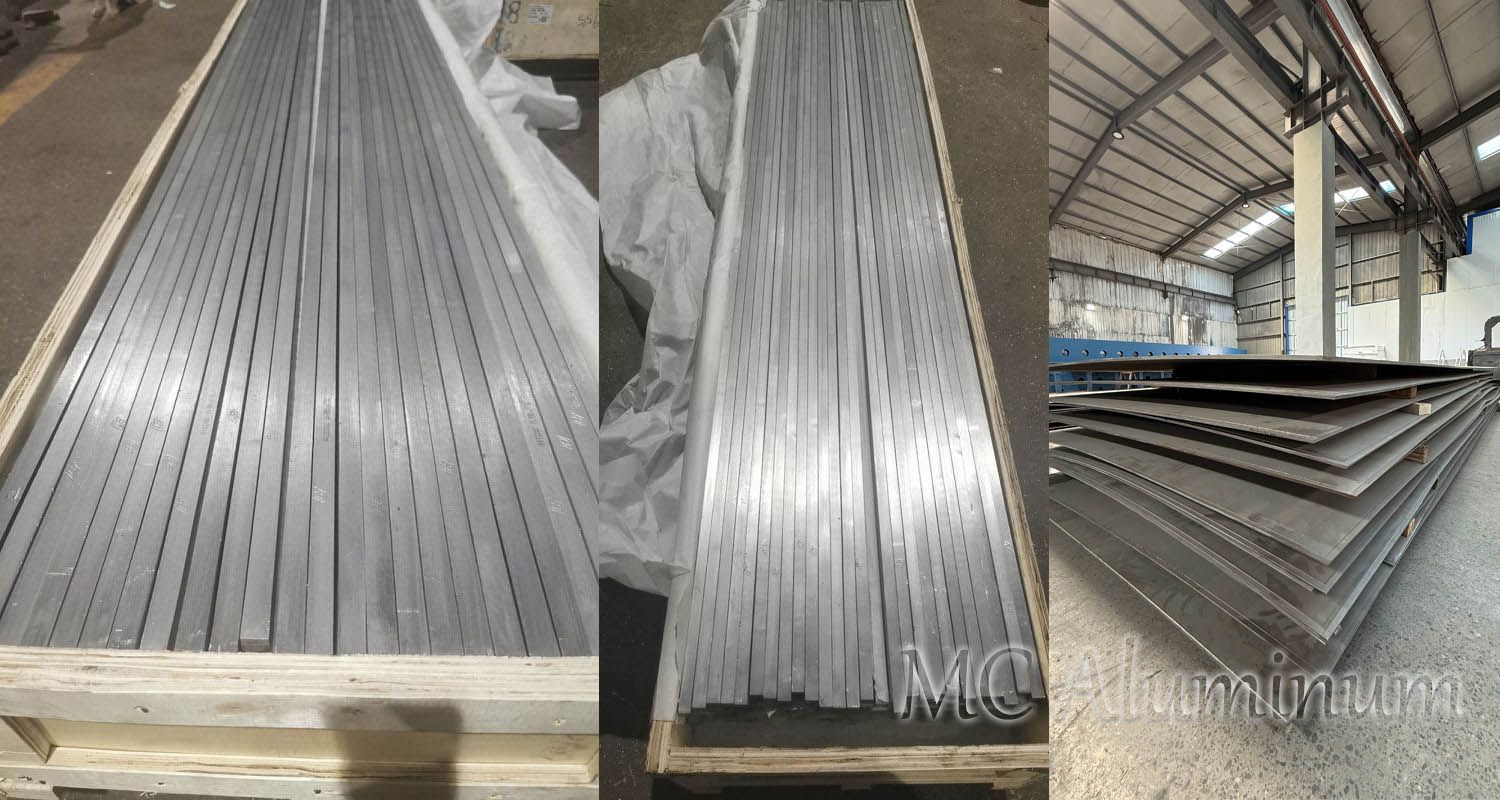

With the advancement of technology, the use of steel-aluminum composite material transition joints has gradually become the preferred method for connecting aluminum superstructures with steel hulls in shipbuilding. Steel-aluminum composite materials typically consist of three layers, and these materials are welded together through explosive welding, a process that bonds materials with significantly different melting points and properties. Explosive welding allows for atomic-level bonding between these materials, resulting in a joint with very high strength. The use of steel-aluminum composite joints improves the construction cycle and quality of steel-aluminum hybrid ships. In these hybrid vessels, only the steel plate needs to be welded with aluminum-steel strips on the steel side, and the aluminum superstructure is welded with aluminum-steel strips on the aluminum side. This ensures the hull's watertightness, airtightness, corrosion resistance, and ease of maintenance.
Steel-aluminum clab joints are connection devices formed by special processes (such as explosive cladding and welding) to achieve metallurgical bonding between steel and aluminum, combining the strength of steel with the lightweight and corrosion resistance of aluminum. These joints are widely used in shipbuilding, bridges, petrochemical, and power engineering fields.
Steel Base (Steel Component)
Material Type: High-strength low-alloy steels (e.g., Q235, Q345) are commonly used, and for special applications, stainless steels (e.g., 304, 316) can be used to enhance corrosion resistance.
Function: Provides the primary load-bearing capacity of the joint. The steel component bears significant mechanical loads and external forces. The high strength of steel ensures good structural stability under load.
Characteristics: High strength, tensile and compressive resistance, excellent wear resistance, but relatively heavy and less corrosion-resistant.
Aluminum Alloy Base (Aluminum Component)
Material Type: Common aluminum alloys include 5083, 6061, or 7075 aluminum alloys, selected based on the specific use scenario.
Function: Provides the lightweight property of the joint, reducing its overall weight. Aluminum’s excellent corrosion resistance makes it especially suitable for humid and marine environments.
Characteristics: Lightweight, good corrosion resistance, high fatigue resistance, but lower tensile strength compared to steel.
The manufacturing process of steel-aluminum composite joints typically involves surface pre-treatment of both aluminum and steel materials, precise processing of joint components, and the use of appropriate joining technologies (such as welding or bonding). During welding, specialized steel-aluminum transition materials (e.g., copper or titanium alloys) are used to ensure the strength and stability of the connection, preventing brittleness and cracking that may arise from direct welding between steel and aluminum interfaces.
Explosive Cladding Process: Uses the explosive pressure to achieve metallurgical bonding between the steel and aluminum interfaces. The resulting interface has high strength and is suitable for extremely low-temperature environments (e.g., liquid nitrogen, liquid oxygen).
Welding Process: Techniques such as CO₂ gas shielded welding and pulse argon arc welding are used, with welding materials like SQJ501 steel wire and ER5183 aluminum wire, ensuring reliable connections between the steel/aluminum components.
Advantages of Steel-Aluminum Composite Joints
1. Strength and Lightweight Balance: The combination of steel's high strength and aluminum's lightweight properties allows the composite joint to withstand significant mechanical loads while reducing overall weight.
2. Excellent Corrosion Resistance: The oxide film formed on the aluminum surface effectively prevents corrosion in humid, salty environments, thus enhancing the joint's service life.
3. Fatigue Resistance: Composite materials offer superior fatigue resistance compared to traditional steel, helping improve the stability and reliability of the equipment.
4. Good Thermal and Electrical Conductivity: Aluminum's excellent thermal conductivity allows the composite joint to dissipate heat effectively, and it also has good electrical conductivity.
5. Efficient Joining Methods: Modern welding, bonding, or mechanical joining methods ensure the stability and firmness of the joint.
6. Cost-Effectiveness: Optimizing material usage reduces overall manufacturing costs.
Applications of Steel-Aluminum Marine Joints
Hull Structure: Steel-aluminum composite joints are widely used in hull shells, bulkheads, decks, and other structural components of ships. They help reduce the ship's weight, enhancing its overall economic and performance characteristics.
Marine Engine Systems: In engine rooms and exhaust systems, using steel-aluminum joints can effectively reduce component thermal expansion, improve corrosion resistance, and ensure the stable operation of the power system.
Deck Equipment and Fittings: Steel-aluminum composite joints can be used to connect pipes, storage compartments, and other equipment on the ship, providing reliable structural support.
Offshore Engineering and Platforms: These joints are also suitable for connecting offshore drilling platforms, floating platforms, and other marine structures, especially in harsh marine environments. They offer advantages such as corrosion resistance and high-pressure resistance.
